Control Unit HD (5+2) with electric valves + Control Box 5-section

€1,143.74

Quantity

szt.

Availability:

high

Find out more about the loyalty program.

Wysyłka gratis przy zamówieniu powyżej 500 zł!

Shipping time: 7 dni

Ask about the product

Delivery

From €12.94 - DPD Netherlands (Belgium)

Attractive terms of cooperation for shops and wholesalers! Preferential terms and reliable service for shops and wholesalers. Find out the details

Description

The set includes Control units HD with electric valves and conrol box 5-section:

CONTROL UNITS HD WITH ELECTRIC VALVES

Convenient operation and accurate liquid dosing – section valves and main electric control valve operation can be managed directly from the operator’s cab.
Robust construction – housing made of specially reinforced copolymer, highly resistant to mechanical damage.
Superior sealing – seals made of innovative Verdesil material (silicone-based) ensure excellent system tightness.
Full compatibility – the control unit is compatible with both ISOBUS systems and other agricultural rate controllers.
Stable system pressure – boom section valves with regulated return flow ensure
constant nozzle pressure – even when individual sections are switched off.
Electric proportional control valve equipped with Ø25 mm inlet connection from the pump and Ø32 mm straight ejector-type on overflow.
Maximum pressure adjustment – main electric control valve with adjustable pressure relief valve includes a manually operated diaphragm valve for maximum pressure setting.
Electric proportional control valve – available in two versions: yellow (for use with manual
control panels) and grey (for use with computers). Enables precise working pressure setting
and guarantees stable system operation, enhancing spraying efficiency.
Universal mounting – main electric control valve, electric proportional control valve and section valves can be mounted via standard flanged connections; electrical connection via 3-pin DIN connector nr 43650.
Elektrovalve set – section electric valves available in blocks of 3, 4, 5, 7, or 9 sections,
with straight plug Ø12.5 mm; optional straight plugs Ø16 mm or Ø20 mm (with 1” nut-type
connection).
Stainless steel filter – filter mesh available in three density options: MESH 50, MESH 80,and MESH 100.
Opening time – 0,3 s, closing time - 1s.

CONTROL BOX 5-SECTION

Version designed for managing 1–5 sections
Equipped with a suction cup and magnetic mount
Features a universal thread 1/4”-20 UNC used e.g. in tripod mount
The digital pressure display ensures safe operation by eliminating the risk of liquid entering the operator’s cab
Internal switches seals ensure full protection of the control box
Supplied with a complete set of cables
Cable length:
- main cable - 5 m, power cable - 3 m,
- cables for connection: the lighting, section valves,proportional valve, the pressure sensor - 1.5 mPower supply: 12 V

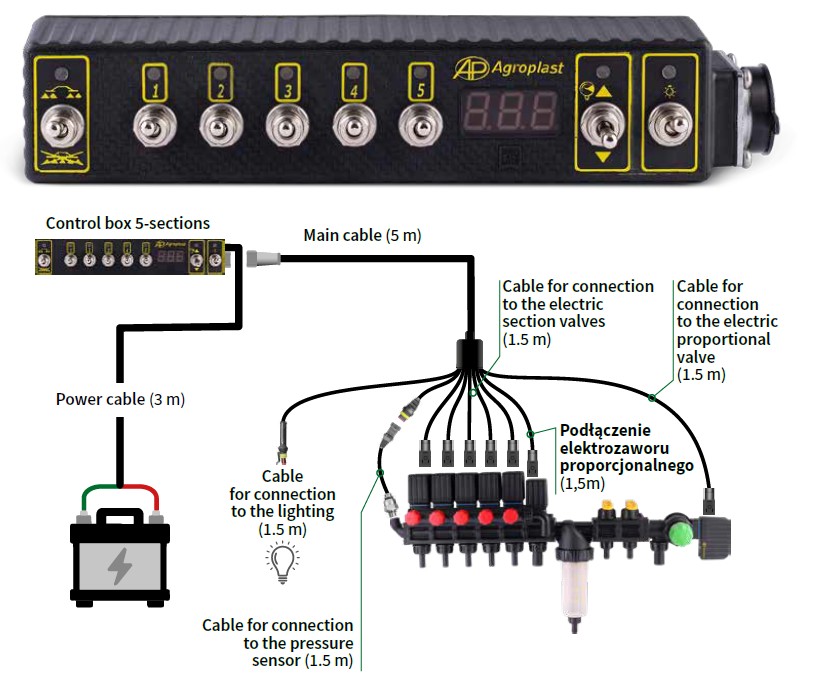

Control units_control box
