Control Unit HD with Electric Valves

€792.61

Quantity

szt.

Availability:

high

Find out more about the loyalty program.

Wysyłka gratis przy zamówieniu powyżej 500 zł!

Shipping time: 5 days

Ask about the product

Delivery

From €12.94 - DPD Netherlands (Belgium)

Attractive terms of cooperation for shops and wholesalers! Preferential terms and reliable service for shops and wholesalers. Find out the details

Description

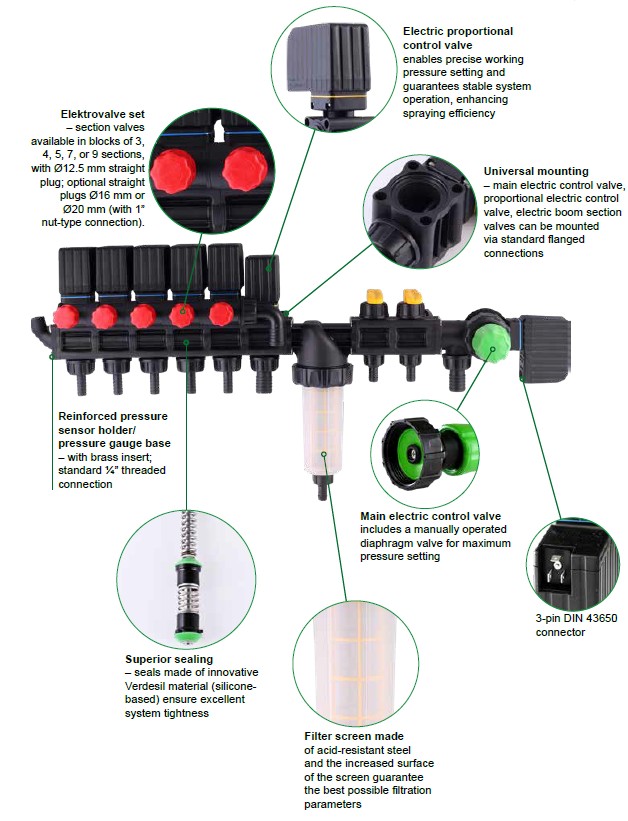

CONTROL UNIT HD WITH ELECTIC VALVES:

Convenient Operation and Accurate Liquid Dosing – section valves and main electric control valve operation can be managed directly from the operator’s cab.

Robust Construction – housing made of specially reinforced copolymer, highly resistant to mechanical damage.

Superior sealing – seals made of innovative Verdesil material (silicone-based) ensure excellent system tightness

excellent system tightness

Full Compatibility – The control unit is compatible with most controllers available on the market

Stable System Pressure – boom section valves with regulated return flow ensure constant nozzle pressure – even when individual sections are switched off

Electric main control valve Equipped with Ø25 mm inlet connection from the pump and Ø32 mm straight ejector-type outlet.

Maximum Pressure Adjustment – main electric control valve includes a manually operated diaphragm valve for maximum pressure setting.

Electric proportional control valve– enables precise working pressure setting and guarantees stable system operation, enhancing spraying efficiency.

Universal Mounting – main electric control valve, proportional electric control valve, and section valves can be mounted via standard flanged connections; electrical connection via 3-pin DIN connector nr 43650

Reinforced Pressure Sensor Holder – fitted with a bronze insert, standard ¼” threaded connection.

Stainless Steel Filter – filter mesh available in three density options: MESH 50, MESH 80, and MESH 100.

Filter Bowl – available in transparent version (up to 10 bar) and black version (up to 20 bar).

opening time – 0,3 s

closing time 1 s

Control Unit HD with Electric Valves
